Stainless Steel Pipe Fittings Products
A piping system using ASTM A403 Pipe Fittings has many inherent advantages over other forms, Global International is a specialized WP Pipe Fittings Suppliers in India
• SS Butt weld Fittings:- Welding a SS fitting to the pipe means that it is permanently leak-proof.
• The continuous metal structure formed between Stainless Steel Pipe and Stainless Steel Fitting adds strength to the system.
• Smooth inner surface and gradual direction changes reduce pressure losses and turbulence and minimize the action of corrosion and erosion.
• A welded system utilizes a minimum of space.
Looking To Buy WP Fittings Suppliers In India? Below Are Our Available Stainless Steel Industrial Pipe Fittings That Will Meet Your Project Needs:
• ASTM A403 Elbows 45° and 90°- long radius and short radius, reducing elbow
• ASTM A403 Return bends 180° - long radius and short radius
• ASTM A403 Reducers - concentric and eccentric reducer
• ASTM A403 Tees - equal and reducing tee, barred tees
• ASTM A403 Caps
• ASTM A403 Stub ends - Type B, to MSS SP-43, 180 Return Bend, 3R & 5R Bends
• Stainless Steel Coupling, SS Cross, ASTM A403 SS Lateral Suppliers, ASTM A403 SS Reducing Lateral, ASTM A403 SS Swage Nipple Suppliers in Mumbai
ASTM A403 Butt welding fittings can be supplied in either seamless or welded construction and are covered by specification ASTM A403M (or ASTM A815M for Duplex grades) and ASME B16.9.
A403 Stainless Steel Pipe Fittings Specification |
||||
A403 Stainless Steel Butt-weld (B/W) Fittings Material |
Size |
Sch. &Swg. |
SS Fittings Specification |
SS Pipe Fittings Items |
A403 Stainless Steel Seamless Fittings suppliers |
15 NB |
Sch. 5 |
A-403 B/W |
A403 SS Bend (Long & Short) |
A403 Stainless Steel Welded [ERW] Fittings suppliers |
15 NB |
Sch. 5 |
A-403 B/W |
|
We can offer stainless Steel butt-weld fittings and stainless steel flanges according to ASME, EN, ISO and DIN standards. We specialize in manufacturing large size and fabricated Stainless Steel butt-weld fittings (upto 48”). Our Stainless Steel butt-weld fittings products are offered in all major grades including stainless steel 304/304L fittings, 316/316L/316Ti fittings, Duplex fittings, Super Duplex fittings, 904L fittings and other special steels. Our stainless steel tube/pipe fittings are highly recommended for marine applications, chemical processing and for manufacturing equipment’s to be used for highly corrosive operating conditions.
Butt-weld Pipe Fittings Specification
Size Range: 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Product Range: Butt-weld Pipe Fittings – Range of Materials, Specifications
Thickness: SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness.
Butt-weld Fittings – Manufacturing Standards
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASME B16.9 Butt-weld Fittings Grades
Stainless Steel Butt weld Pipe Fittings: ASTM A403 WP 304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904L/2205 Duplex Fittings
A403 Pipe Fittings Chemical Composition
Type |
C |
Mn |
P |
S |
Si |
Cr |
Ni |
Mb |
302 |
0.15 |
2.00 |
0.045 |
0.030 |
1.00 |
17.00/19.00 |
8.00/10.00 |
– |
304* |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00/20.00 |
8.00/10.50 |
– |
304L* |
0.03 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00/20.00 |
8.00/12.00 |
– |
309 |
0.20 |
2.00 |
0.045 |
0.030 |
1.00 |
22.00/24.00 |
12.00/15.00 |
– |
309S |
0.08 |
2.00 |
0.045 |
– |
1.00 |
22.00/24.00 |
– |
– |
310 |
0.25 |
2.00 |
0.045 |
0.030 |
1.5 |
24.00/26.00 |
19.00/22.00 |
– |
310S |
0.08 |
2.00 |
0.045 |
0.030 |
1.5 |
24.00/26.00 |
19.00/22.00 |
– |
316* |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
16.00/18.00 |
10.00/14.00 |
2.00/3.00 |
316L* |
0.03 |
2.00 |
0.045 |
0.030 |
1.00 |
16.00/18.00 |
10.00/14.00 |
2.00/3.00 |
317 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00/1.00 |
18.00/20.00 |
11.00/15.00 |
3.00/4.00 |
317L |
0.03 |
2.00 |
0.045 |
0.030 |
0.75 |
18.00/20.00 |
11.00/15.00 |
3.00/4.00 |
321 |
0.08 |
2.00 |
0.040 |
0.030 |
1.00 |
17.00/19.00 |
9.00/12.00 |
0.75/0.75 |
347 |
0.08 |
2.00 |
0.040 |
0.030 |
0.5/1.00 |
17.00/19.00 |
9.00/12.00 |
0.5/0.75 |
A403 Pipe Fittings Mechanical Properties
Type |
UNS |
Tensile |
Yield |
Elongation |
Hardness |
Hardness |
302 |
S30200 |
75 |
30 |
40% in 2″ |
183 |
88 |
304* |
S30400 |
75 |
30 |
40% in 2″ |
183 |
88 |
304L* |
S30403 |
70 |
30 |
40% in 2″ |
183 |
88 |
309 |
S30900 |
75 |
30 |
40% in 2″ |
217 |
95 |
309S |
S30908 |
75 |
30 |
40% in 2″ |
217 |
95 |
310 |
S31000 |
75 |
30 |
40% in 2″ |
217 |
95 |
310S |
S31008 |
75 |
30 |
40% in 2″ |
217 |
95 |
316* |
S31600 |
75 |
30 |
40% in 2″ |
217 |
95 |
316L* |
S31603 |
70 |
25 |
35% in 2″ |
217 |
95 |
317 |
S31700 |
75 |
30 |
35% in 2″ |
217 |
95 |
317L |
S31703 |
75 |
30 |
35% in 2″ |
217 |
95 |
321 |
S32100 |
75 |
30 |
40% in 2″ |
183 |
88 |
347 |
S34700 |
75 |
30 |
40% in 2″ |
183 |
88 |
Application of Stainless Steel Pipe Fittings
1. Oil & Gas Industry
2. Nuclear Power/ Nuclear Plants
3. Industrial Boilers
4. Power Plants
5. Condensers
6. Refineries
7. Ship Building
8. Heat Exchangers
9. Paper & Pulp
10. Marine Applications
11. Fossil Fuel Power Plants
A403 -W
GRADE |
SCHEDULE |
NOM. PIPE SIZE |
WP-W |
SCH 10S |
1/2″ – 24″ |
|
SCH 40S |
1/2″ – 12″ |
A403 -S
NACE MR 01-75 | ASTM A262E | PMI TESTED
CERTIFICATE EN 10204/3.1B
GRADE |
SCHEDULE |
NOM. PIPE SIZE |
WP-S |
SCH 10S |
1/2″ – 12″ |
|
SCH 40S |
1/2″ – 12″ |
|
SCH 80S |
1/2″ – 12″ |

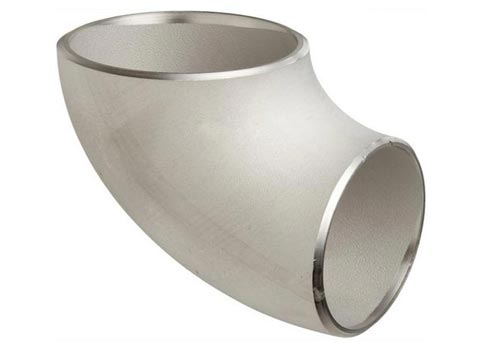

Stainless Steel Elbow
Stainless steel Elbow: We Have Specialization to Manufacture Customized ANSI/ASME B16.9 45° Long Radius Elbow per Customers

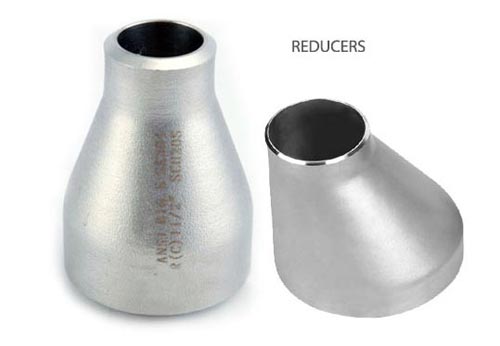

Stainless Steel Reducers
Stainless Steel Reducers: We Have Specialization to Manufacture Customized ANSI/ASME B16.9 Butt Weld Reducers per Customers

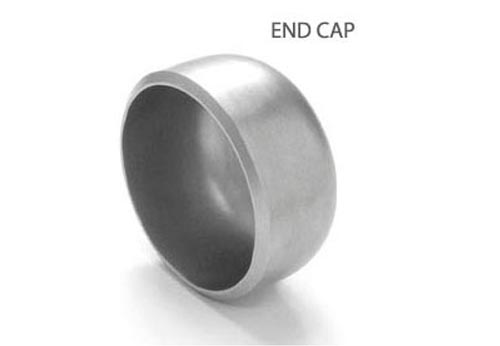

Stainless Steel End Cap
Stainless Steel End Cap: We Have Specialization To Manufacture Customized ANSI/ASME B16.9 Butt Weld End Cap Per Customers’ Specifications

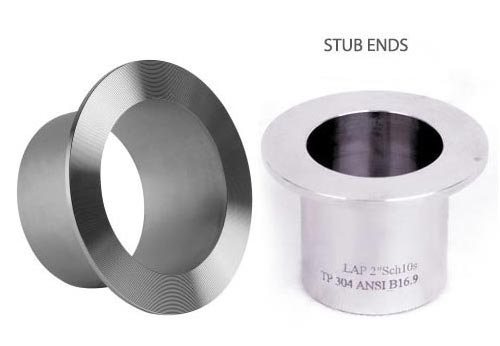

Stainless Steel Stub Ends
Stainless Steel Stub Ends: We Have Specialization To Manufacture Customized ANSI/ASME B16.9 Butt Weld Stub End Per Customers

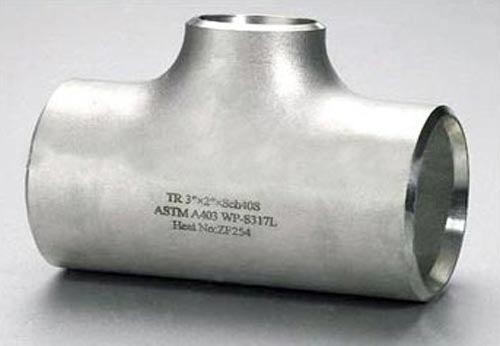

Stainless Steel Tees
Stainless Steel Tees: We Have Specialization to Manufacture Customized ANSI/ASME B16.9 Straight Tees and Crosses per Customers

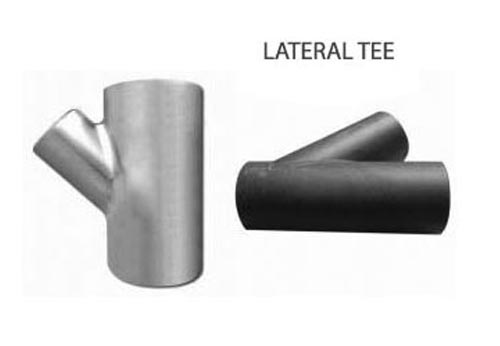

Stainless Steel Lateral Tee
Stainless Steel Lateral Tee: We Have Specialization to Manufacture Customized ANSI/ASME B16.9 Lateral Tee Per Customers’ Specifications

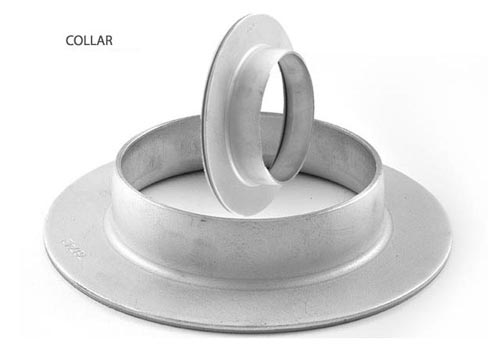

Stainless Steel Collar
Stainless Steel Collar: We Have Specialization to Manufacture Customized ANSI/ASME B16.9 Butt Weld Collar per Customers’ Specifications

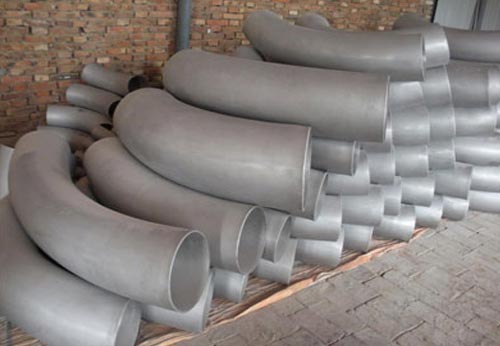

Stainless Steel Pipe Bend
Stainless Steel Pipe Bend: We Have Specialization to Manufacture Customized ANSI/ASME B16.9 Long Radius Bend / Pipe Bend Per Customers
Stainless Steel Piggable Bend
Stainless Steel Piggable Bend: We Have Specialization to Manufacture Customized ANSI/ASME B16.9 Piggable Bend per Customers’ Specifications

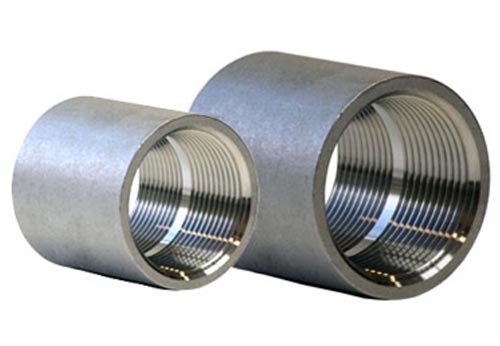

Stainless Steel Threaded Reducing Coupling
Stainless Steel Threaded Reducing Coupling: We Have Specialization to Manufacture Customized ASME B16.11 / BS3799 Threaded Reducing Coupling Per Customers

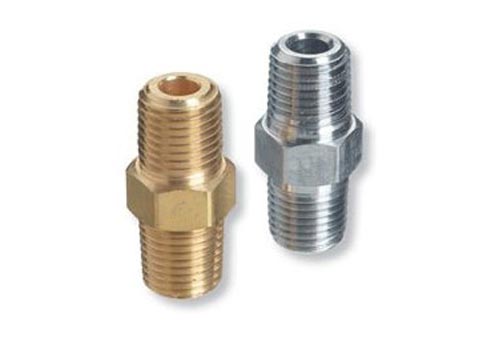

Stainless Steel Nipple
Stainless Steel Nipple: We Have Specialization to Manufacture Customized ASME B16.11 / BS3799 Threaded Hex Nipple per Customers

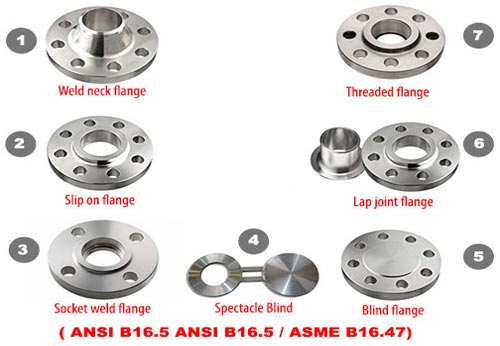

ANSI B16.5 / ASME B16.5 Flanges
