Stainless Steel Lateral Tee

Standards:

ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Butt-welding Fittings”
ASME B16.25 – ‘Butt-welding Ends’
ASME B16.28 – ‘Wrought Steel Butt-welding Short Radius Elbows and Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’

Schedule:

Sch 5 TO Sch XXS.

Sizes:

1/2” TO 36”
(SEAMLESS UPTO 24”)
(WELDED 8” TO 36” )

Materials:

Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L,  316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404

Type:

Butt Weld (BW)

Thickness:

Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Dimension:

ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

Nominal
Pipe Size

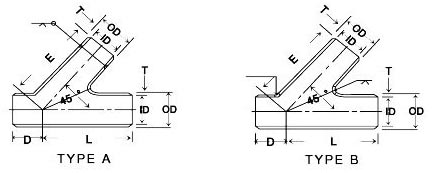

TYPE

Outside
Diameter OD

STD

X – S

NPS

E & L

D

T

ID

E & L

D

T

ID

1
1¼
1½

B
B
B

1.315
1.660
1.900

5.75
6.25
7.00

1.75
1.75
2.00

0.133
0.140
0.145

1.049
1.380
1.610

6.50
7.25
8.50

2.00
2.25
2.50

0.179
0.191
0.200

0.957
1.278
1.500

1
1¼
1½

2
2½
3

A/B
B
B

2.375
2.875
3.500

8.00
9.50
10.00

2.50
2.50
3.00

0.154
0.203
0.216

2.067
2.469
3.068

*8.00
**9.00
10.50
11.00

2.50
2.50
3.00

0.128
0.276
0.300

1.939
2.323
2.900

2
2½
3

3½
4
5

B
A/B
B

4.000
4.500
5.562

11.50
12.00
13.50

3.00
3.00
3.50

0.226
0.237
0.258

3.548
4.026
5.047

12.50
*12.00
**13.50
15.00

3.00
3.00
3.50

0.318
0.337
0.375

3.364
3.826
4.813

3½
4
5

6
8
10

A/B
B
B

6.625
8.625
10.750

14.50
17.50
20.50

3.50
4.50
5.00

0.280
0.322
0.365

6.065
7.981
10.020

*14.50
**17.50
20.50
24.00

*3.50
**4.00
5.00
5.50

0.432
0.500
0.500

5.761
7.625
9.750

6
8
10

12
14
16

B
B
B

12.750
14.000
16.000

24.50
27.00
30.00

5.50
6.00
6.50

0.375
0.375
0.375

12.000
13.250
15.250

27.50
31.00
34.50

6.00
6.50
7.50

0.500
0.500
0.500

11.750
13.000
15.000

12
14
16

18
20
24

B
B
B

18.000
20.000
24.000

32.00
35.00
40.50

7.00
8.00
9.00

0.375
0.375
0.375

17.250
19.250
23.250

37.50
40.50
47.50

8.00
8.50
10.00

0.500
0.500
0.500

17.000
19.000
23.000

18
20
24
