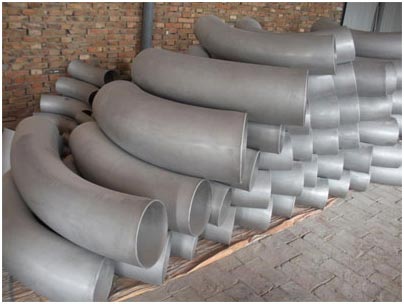

Stainless Steel Piggable Bend
ANSI/ASME B16.9 Piggable Bend
ASME B16.9 Piggable Bend Specification
ASME B16.9 Piggable Bend Dimensions
RANGE : 2"NB TO 18" NB ANSI B 16.9 IN
SCH : 5, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
TYPE : SEAMLESS / WELDED/ FABRICATED
Form : Long radius Bend, Piggable Bend, Hot bend, With R=3D, 5D, 6D, 8D, 10D & Customized Bend
Offer : Minimum Wall Thinning rate &Ovality, No Wrinkles
ASME B16.9 Piggable Bend Dimensions
Gauge |
Stainless Steel Minimum Bend Radius |
Stainless Bend Radius |
11 gauge (0.120" |3.05mm) |
.5" |
.07", .08", .09", .1", .125" |
14 gauge (0.075" | 1.9 mm) |
.275" |
.05", .055", .062", .07", .075" |
.375" |
.07", .105" |
|
.5" |
.09", .11", .115", .12" |
|
1.375" |
.4" |
|
16 gauge (0.060" | 1.52 mm) |
.2" |
.035", .05" |
.265" |
.05", .055", .075", .08" |
|
.375" |
.07" |
|
.5" |
.105", .12" |
|
18 gauge (0.048" | 1.22 mm) |
.2" |
.04", .045", .05" |
.265" |
.06", .07", .08", .085" |
|
.375" |
.1", .125" |
|
.5" |
.115", .12" |
|
20 gauge (0.035" | 0.89 mm) |
.2" |
.05" |
.265" |
.06", .07" |
|
.375" |
.095" |
|
22 gauge (0.029" | 0.74 mm) |
.2" |
.05" |
.265" |
.04", .08" |
|
24 gauge (0.024" | 0.61 mm) |
.2" |
.04" |
.265" |
.08" |
ASME B16.9 Piggable Bend Uses & Application
• Oil Mills
• Mining
• Construction
• Shipbuilding
• Steel Plant
• Offshore
• Defense
• Ports
• Railway
• Engineering Co. &
• Government Org. etc.
